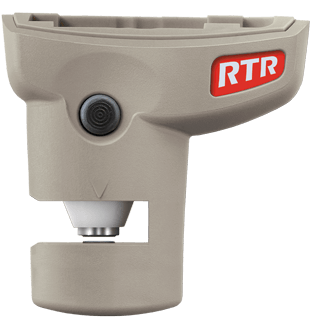

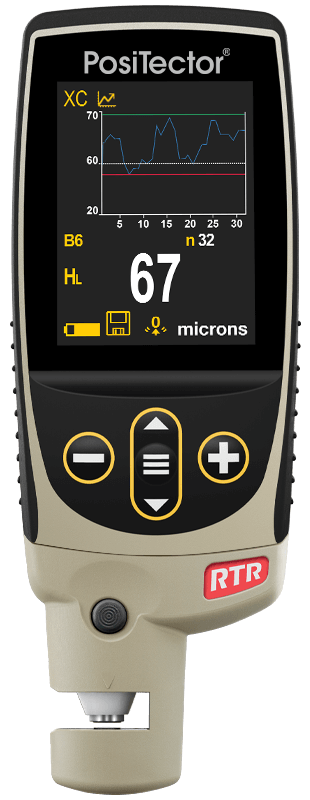

Electronic Surface Profile Gage DeFelsko PosiTector RTR H 20-115 micron

Pengukur Profil Permukaan untuk Blasted Steel dan Pelapis Bertekstur.

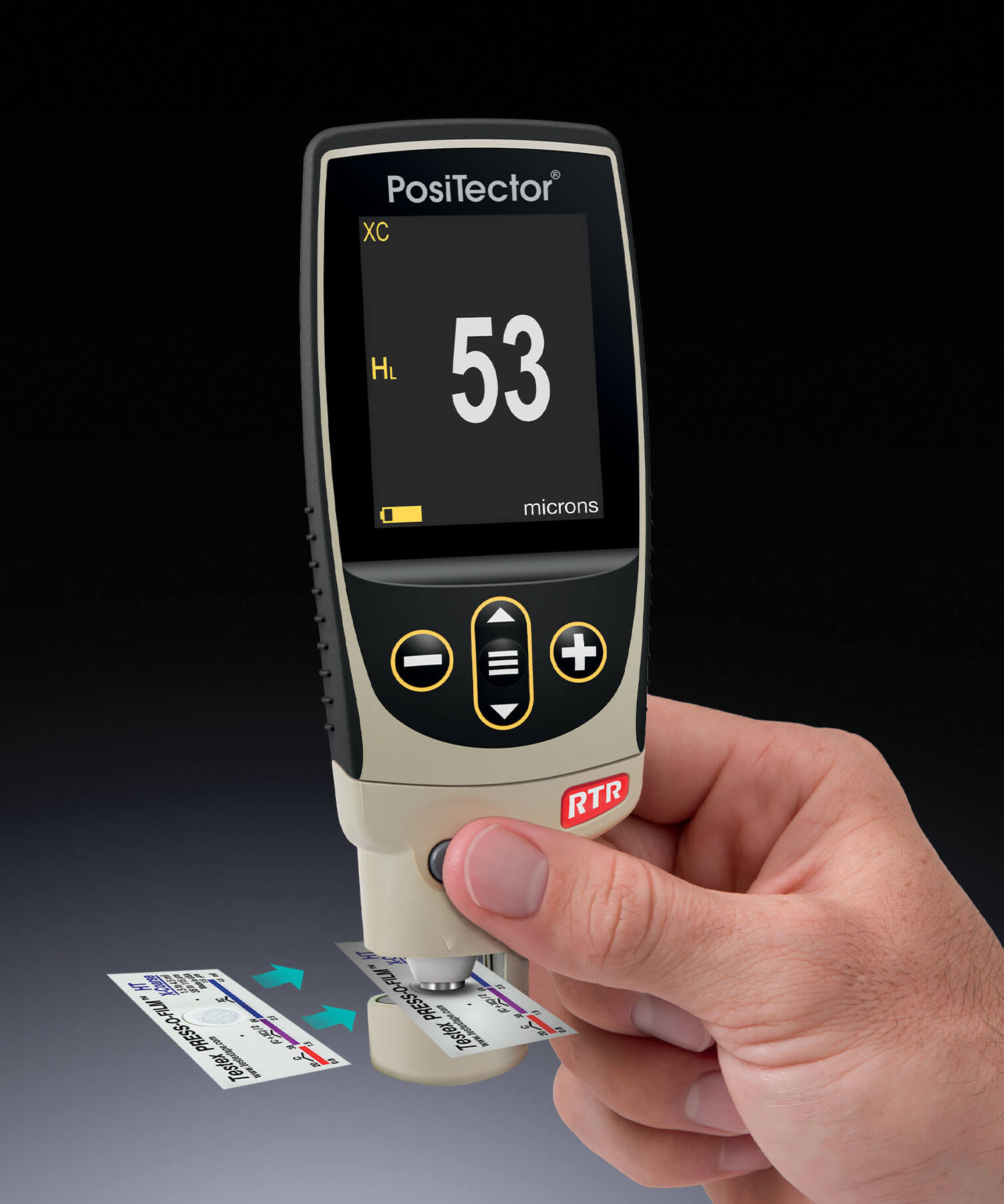

Mikrometer Digital untuk mengukur pita replika Testex® Press-O-Film®—compatible dengan badan pengukur PosiTector.

Spesifikasi:

Peak Height (HL)
Measurement Range

20 to 115 μm
(0.8 to 4.5 mils)

Peak Height (HL) Accuracy

± 5 μm (± 0.2 mils)

Peak Height (HL) Resolution

1 μm (0.1 mils)

Anvil Diameter

Ø6.35 mm (Ø0.25 inch)

Anvil Pressure

1.1 Newtons (110 gram-force)

Size*

127 x 66 x 25.4 mm
(5" x 2.6" x 1")

Weight*

137 g (4.9 oz.) without batteries

* Size and weight are for the PosiTector gage body only and do not include the probe.
